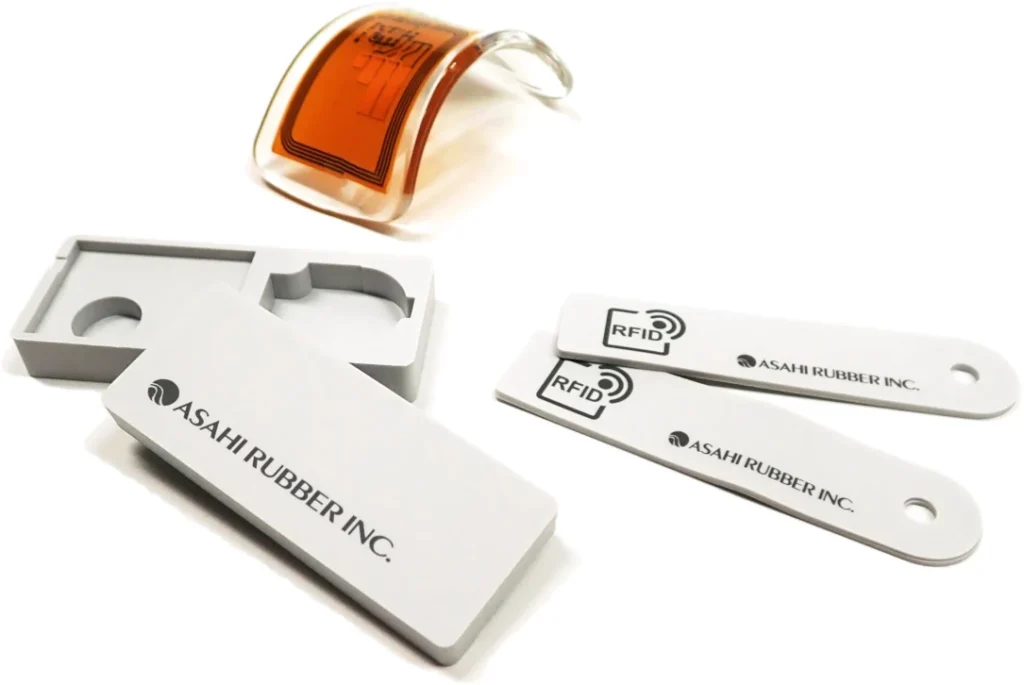

Soft Protective Cover RFID Tag
RFID Inlay in Soft, Protective Silicone Rubber
Silicone Material Provides:
Shock Resistance
rubber cushions impacts and vibration
Weathering Resistance
nearly unaffected even under severe exposure to UV, ozone, and extreme temperatures
Fouling Resistance
few contaminants can adhere to silicone with its low surface energy
The Perfect Seal Enables:
Flexibility
the bonded shell halves never delaminate
Water Resistance
Dust Resistance
A standard inlay is sandwiched between two sheets of silicone rubber

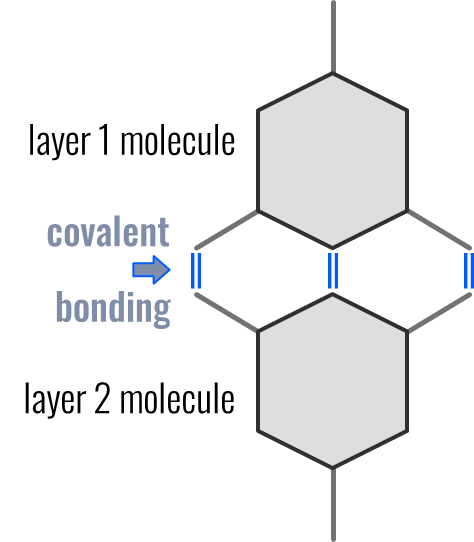

With Asahi Rubber’s proprietary molecular adhesion technology, the two layers become effectively a single piece with no adhesive or residue
Application Suggestions
Logistics
- container tracking
- cold storage data logging
Construction
- equipment management
- materials tracking
Infrastructure
- data logging
- maintenance records
Agriculture
- livestock management
- GPS logging
Hospital
- wristband chart logging
- equipment management
- inventory tracking
Leisure and Events
- wristband admission tracking
- patron status, preference, and special needs management
Industry
- equipment management
- inventory tracking
- data logging
Standard Lineup

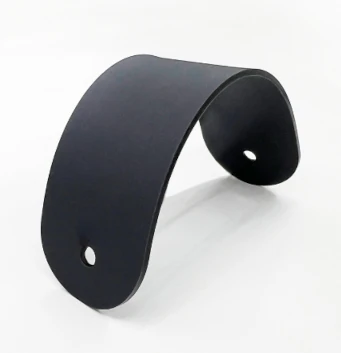

YR-UL01
138×34×1.7mm, 9g
ISO/IEC 18000-63 and EPC Global Gen2v2 Compliant
860~960MHz, 17m read range at 920MHz
Impinj M730 IC with 128bit EPC memory

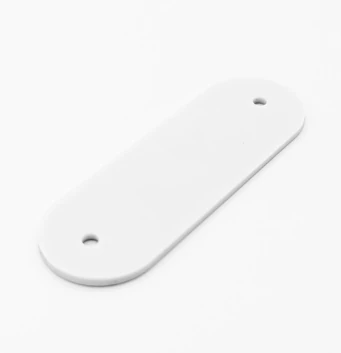

YR-US03
60×20×1.7mm, 2.1g
ISO/IEC 18000-63 and EPC Global Gen 2v2 Compliant
860~960MHz, 9m read range at 920MHz
Impinj M830 IC with 128bit EPC memory
Customization
Colors
Medical Grade
Optical Grade
Surface Tackiness Against Various Materials
Liquid Silicone Rubber Encapsulation
Shape can be easily customized, even for samples, as it only requires simple cutting of silicone sheet
